Agile microseismic monitoring for geothermal

14th Mar, 2023
Project snapshot

Project snapshot

Client: University of Oxford

Goal of the seismic survey:

  • Microseismic monitoring of water injection into a well operated by Eden Geothermal to understand the effect of the injection on Eden's geothermal system and to assess potential interactions with faults.
  • The University of Oxford was requested to acquire and analyse seismic data during well-testing operations using microseismic processing techniques enabled by a dense deployment of STRYDE Nodes™.

Survey information

Untitled design 45

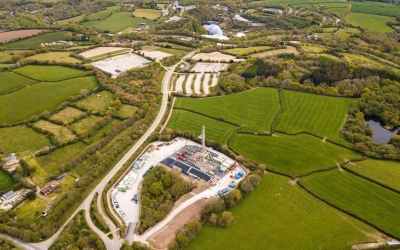

UK – Cornwall

Untitled design 48

Application seismic was acquired for

Monitoring of a water injection on a geothermal well

C9b37bb1 e9ba 42e6 87ae fb71b43a37ed STRYDE Icon Low Environ Footprint

Survey terrain

Grassland – agricultural terrain

Dbdcf83c 1cd0 4ae4 9c4d dbedef7f26c2 STRYDE Icon Dynamic

Survey size

3 km radius around the injection well

Icons for Geo India 10

Survey type

Continuous passive seismic recording was performed using STRYDE Nodes™. Nodes were deployed 5 days prior to the start of injection to acquire baseline data. Recording continued during injection, and for a period of ~2 weeks post-injection.

Untitled design 47

Survey layout

The survey design aimed to optimise spatial sampling (azimuths and offsets) of the seismic wavefield around the injection well, and was largely driven by land access constraints due to the large number of landowners in the survey area. The nodes were deployed in various 1C and 3C arrangements, with station spacing varying from 50 m up to 1 km.

66d1fd78 861c 41c7 bcc3 312564a15fbe Global Deploy Node

Number of nodes deployed

441 nodes for 28 days

Be44540b d88e 4b08 b311 0dbdfbc12028 STRYDE Icon Respectful

Deployment and retrieval statistics

For node deployment, 2 teams of 2-3 people deployed 441 nodes in 2.5 days, and for retrieval,  teams of 1-2 people retrieved 441 nodes in 1 day

F9d7a6bf b89b 4297 b063 d0b541e74402 STRYDE Icon Reduced Cost


28 days of continuous passive seismic data, in SEG-D format from 400+ receiver stations

How we helped

The technology we supplied

STRYDE supplied the University of Oxford with 450 STRYDE Nodes™ plus the field peripherals required to deploy and retrieve the nodes. STRYDE supplied nodes that were ready prepared for immediate deployment. This reduced operational costs by minimising the amount of time required for deployment operations and by lowering the amount of equipment that needed to be mobilised to the field site.

Upon project completion, the nodes were returned for data harvesting at STRYDE’s facility in Asker, Norway. Final data deliverables were then made available to the University of Oxford via a secure cloud datastore within 2 weeks of receiving the equipment back from the field.

The technology we supplied

Survey planning

Challenges experienced during survey planning and how STRYDE technology helped overcome these challenges...

Land access

Land access

The area surrounding the injection point was home to over 20 private landowners, meaning each landowner had to be individually consulted and educated about the project, technology, and impact this would have on the landowner’s land. This incurred significantly more time than initially planned and resulted in the survey layout having to be modified to ensure livestock and farming operations were not disrupted.
Time constraints

Time constraints

The survey had to align with the operator’s operational plans for injection to capture the baseline data as well as the monitoring data, post-injection. Confirmation of the injection start date was received with only 3 weeks’ notice. This required a joint effort between Oxford and STRYDE to ensure the required inventory was delivered quickly and training was provided in time for the survey start date.


Budget constraints meant there was a tight budget available to cover the seismic receiver inventory required to conduct the survey. If STRYDE’s low-cost technology solution and flexible commercial model had not been available, the University would have had to complete additional grant applications to fund the project. This would have been incompatible with the well operator’s timeline and so the opportunity to acquire the survey would have been missed.

“Not only did we get access to next-generation seismic instruments, but the contact with experienced seismologists at STRYDE (who clearly understood what instrument characteristics were important for our application), provided advice on how to maximise success on the deployment was a real bonus for us.

The STRYDE Navigator Tablet and App provided location accuracy of node locations for retrieval that was particularly impressive and was essential for retrieving the nodes in what was challenging terrain, and reduced the retrieval time (and therefore cost/man hours) down to 24 hours.

I was especially impressed by the number of instruments we were able to quickly deploy and the per-unit cost which I believe has the potential to revolutionise microseismic studies, even above and beyond other node providers.”

Tom Hudson, Postdoctoral Researcher, Department of Earth Sciences at The University of Oxford

Benefits of working with STRYDE

The use of STRYDE Nodes™ on this acquisition enabled a magnitude of cost savings and operational efficiency gains, as well as reduced exposure to HSSE risk, and a significant reduction in environmental footprint and land disruption.

66d1fd78 861c 41c7 bcc3 312564a15fbe Global Deploy Node

Miniature, nonobtrusive equipment

Using the world’s smallest land seismic sensors to acquire this survey made conversations with private landowners easier. Stakeholders were amazed by how small the equipment was and happily granted permission to access and deploy instruments on their land, once they understood how non-intrusive the equipment and survey would be.

F9d7a6bf b89b 4297 b063 d0b541e74402 STRYDE Icon Reduced Cost

Rapid access to seismic tech

Providing access to STRYDE’s seismic sensors within 2 weeks ensured the team at Oxford was able to align with Eden Geothermal’ s operational plans for injection, and meant they were able to successfully capture the baseline data prior to injection and monitor the subsurface thereafter.

Icons for Geo India 10

Efficient node deployment

Given the tight project timeline, the deployment of the nodes needed to be extremely fast paced. The node’s compact weight and size, combined with stakeless deployment operations enabled by STRYDE’s Navigator Tablet and App, meant that even with a small deployment team 441 nodes could be deployed by foot in just 2.5 days.

Untitled design 67

Long-lasting battery

It was important to have the nodes in the ground for as long as possible to effectively identify any seismic events that occurred pre, during and post-injection. STRYDE’s autonomous Nodes™ can reliably record continuous data 24 hours a day for 28 days. This enabled seismicity monitoring data to be recorded by the team at Oxford over the entire lifecycle of the geothermal well stimulation operations.

Icons for Geo India 5

Reduced equipment and operational costs

The STRYDE system has transformed the price point of land seismic equipment relative to the cost of conventional seismic instruments. Furthermore, the ability to deploy the miniature nodes quickly meant planning, preparation, and logistical overheads were greatly reduced, unlocking further cost savings and efficiency gains.

9ef2abf3 f7cb 4431 846f c12bebff7b6e STRYDE Icon Improved HSSE

Speedy onboarding and start-up

The simplicity of the STRYDE system means that it is extremely easy to use and is even accessible to people with no previous seismic experience. The Oxford team required only a couple of hours of virtual training to onboard them to the system prior to deployment operations commencing. This allowed the team to start up efficiently and effectively, as was required to comply with the tight operational schedule for fluid injection.

“Due to the tight project turnaround requirements, and because we don’t have a lot of time to dedicate to fieldwork due to other ongoing research projects, we were extremely pleased with how quickly we were able to get access to the technology in such a short period of time, and how easy and quick the nodes were to deploy and retrieve.

I have worked with bulky, and more costly nodal devices before and experienced limitations in terms of quantities we were able to afford, and how quickly they could be deployed. As a seismologist, being able to access and deploy a large number of miniature, low-cost instruments has totally changed the way we do microseismic monitoring, and I am really excited to start working with the data acquired.”

Tom Kettlety, Research Fellow in Geological Carbon Storage at The University of Oxford
